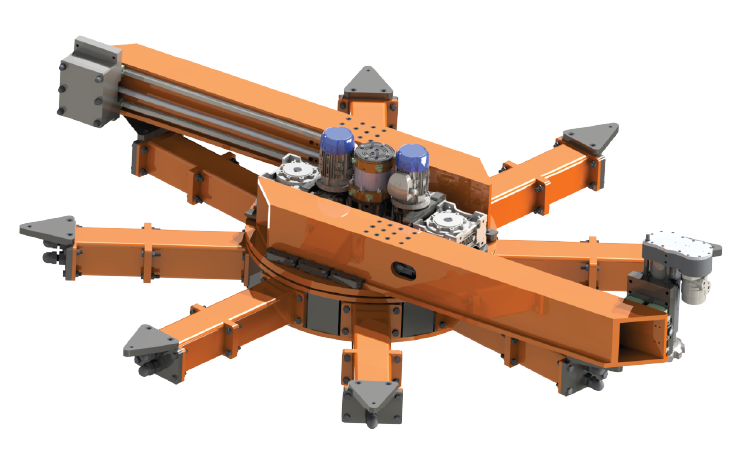

Flange Facers

Facing Diameter:500-4500mm

Cutter:Indexable Face mill Cutter

Surface Finish:1.6Ra - 3.2Ra

Z-feed:50-120mm

Operation:Milling, Grooving, Sereation

Accuracy:0.02 - 0.05 mm

Feed System:Manual / Automatic

Control:Servo, Hydraulic (Optional)

Mounting Type:Internal / External clamping

Drive Type:Electric / Hydraulic

Spindle Speed:Variable (0 – 100 RPM approx.)

Orientation:Both Vertical and Horizontal

Power Supply:230V / 415V

Tool Feed:Radial Feed Mechanism

Controller:Manual/PLC controller (CNC-optional)
